CrowdSec Cloudflare Worker

📚 Documentation 💠 Hub 💬 Discourse

ModeStream only
MetricsSupported
MTLSSupported
PrometheusSupported

Overview​

This Remediation Component (aka Bouncer) uses Cloudflare Workers to block or challenge incoming requests.

  • It uses decisions taken by your CrowdSec Security Engine and/or Blocklists you subscribed to.
  • It can be directly plugged to CrowdSec Blocklists via a CrowdSec Blocklist as a Service Integration.

The bouncer uses Cloudflare Workers in combination with Cloudflare Workers KV (KeyValue store).

  • Register this remediation component into your Security engine: Here.
  • OR setup a Blocklist as a Service endpoint for a remediation component: Here.

This Remediation Component heavily relies on Cloudflare Workers and KV store.
It works best on a paid Workers subscription. More explanation in the chapter Test with Cloudflare free plan

Operational modes​

This Remediation Component can operate in two modes:

  • Daemon Mode: A Go process runs continuously on a host/vm, periodically syncing decisions from your CrowdSec Security Engine to Cloudflare.
  • Autonomous Mode: A Go process creates/delete an autonomous Cloudflare Worker that periodically syncs decisions within Cloudflare itself.

Daemon Mode​

This mode is recommended if you are using a Security Engine and want to relay all/part of the decisions (and subscribed blocklists) to Cloudflare.
It provides more control and flexibility over the decision synchronization process.
It requires the Bouncer (Go process) to run continuously on a host/VM, usually alongside your CrowdSec Security Engine.

The Workers and KV created by the bouncer will be cleaned up from Cloudflare upon launch error OR bouncer stoppage.

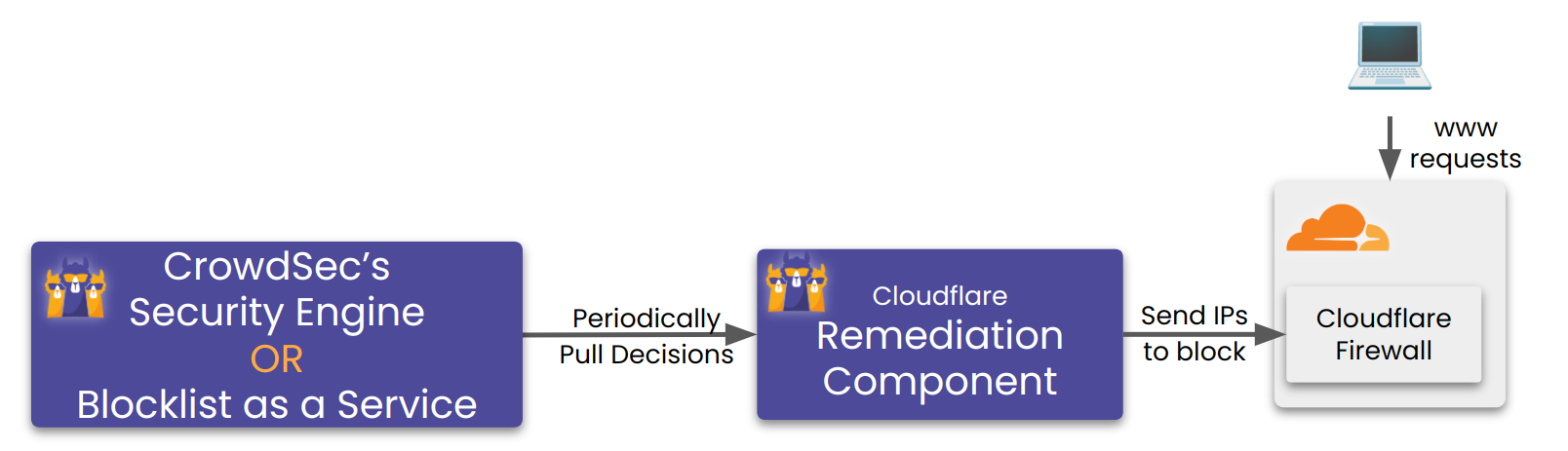

cloudflare-worker remediation component global view

Autonomous Mode​

This mode is recommended if you want a minimal footprint deployment, without having the bouncer process running on your host/VM.
💡 It is ideal if you want to directly plug a Blocklist integrations into Cloudflare.

It can also be plugged to a Security Engine, but woould require an open connection from Cloudflare to your LAPI. We recommend using Daemon mode in a usecase where a Security Engine is involved.

⚙️ Init / Removal on CloudFlare​

Creation of necessary Cloudflare Workers and KV stores is done once at init time.
And can be cleaned up by running the bouncer with the appropriate instruction* (more details int the installation section).*

The init phase create two workers and one KV store.:

  • The remediation worker, which applies the decisions to incoming requests:
    • It uses the KV store to lookup decisions.
    • It is bound to worker routes to protect your selected zones.
  • The decisions sync worker, which periodically fetches and caches decisions and updates the KV store.

The cleanup phase deletes all the created components.

cloudflare-worker remediation component autonomous init view

⚙️ Periodic decision sync within Cloudflare​

Once initialized, the decisions sync worker runs periodically based on a cron schedule defined in the configuration.

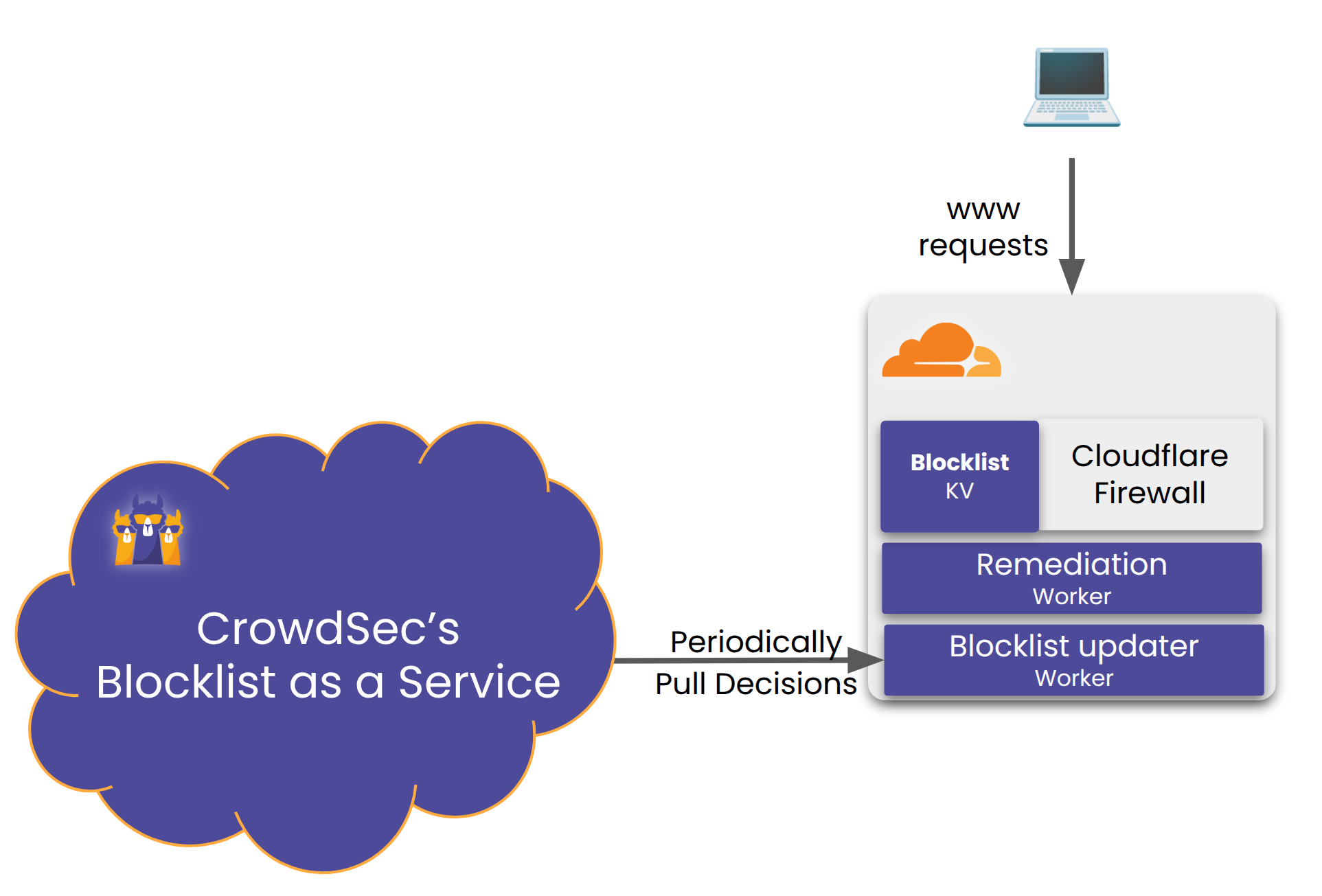

cloudflare-worker remediation component autonomous sync view

Installation​

After configuring and starting the Remediation Component, please see the setting up worker fail mode section.

Prerequisites​

Before installing the CrowdSec Cloudflare Worker Remediation Component, you need a Cloudflare API token with the required permissions to create and manage Workers, KV stores, and other Cloudflare resources

For instructions on generating a Cloudflare API token with the correct permissions, see Generating a Cloudflare API Token.

Packages Installation​

Packages for crowdsec-cloudflare-worker-bouncer are available on our repositories. You need to pick the package accord to your firewall system :

sudo apt install crowdsec-cloudflare-worker-bouncer

Then run the following commands to setup your Remediation Component:

sudo crowdsec-cloudflare-worker-bouncer -g <CLOUDFLARE_TOKEN1>,<CLOUDFLARE_TOKEN2> -o /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml # auto-generate cloudflare config for provided space separated tokens
sudo vi /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml # review config and set `crowdsec.lapi_key` if haven't alread
sudo systemctl start crowdsec-cloudflare-worker-bouncer # the Remediation Component now syncs the crowdsec decisions with cloudflare components.

Please configure your server to emit real IPs rather than cloudflare IPs in logs, so crowdsec can function properly. See how to here

If your Remediation Component is not installed on the same machine than LAPI, don't forget to set the crowdsec_lapi_url and crowdsec.lapi_key in the configuration file /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml

You need to run sudo crowdsec-cloudflare-worker-bouncer -d to cleanup existing cloudflare components created by Remediation Component before editing the config files.

You can run sudo crowdsec-cloudflare-worker-bouncer -g <CLOUDFLARE_TOKEN1>,<CLOUDFLARE_TOKEN2> -o /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml to generate the configuration by discovering all the accounts and the zones associated with the provided tokens.

Manual Installation​

Assisted​

Download the latest release.

tar xzvf crowdsec-cloudflare-worker-bouncer.tgz
cd crowdsec-cloudflare-worker-bouncer/
sudo ./install.sh
sudo crowdsec-cloudflare-worker-bouncer -g <CLOUDFLARE_TOKEN1>,<CLOUDFLARE_TOKEN2> -o /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml # auto-generate cloudflare config for provided tokens
sudo vi /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml # review config and set `crowdsec.lapi_key` if haven't already
sudo systemctl start crowdsec-cloudflare-worker-bouncer # the Remediation Component now syncs the crowdsec decisions with cloudflare components.

From source​

⚠️ requires go >= 1.23

git clone https://github.com/crowdsecurity/cs-cloudflare-worker-bouncer
cd cs-cloudflare-worker-bouncer
make release
cd crowdsec-cloudflare-worker-bouncer-*
./crowdsec-cloudflare-worker-bouncer -g <CLOUDFLARE_TOKEN1>,<CLOUDFLARE_TOKEN2> -o /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml # auto-generate cloudflare config for provided space separated tokens
sudo vi /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml # review config and set `crowdsec.lapi_key` if haven't already
sudo systemctl start crowdsec-cloudflare-worker-bouncer

How it works​

The Remediation Component can operate in two modes:

Daemon Mode (default)​

The Remediation Component does the following:

  1. Create a Cloudflare Worker and a Worker KV per configured account.
  2. Create a Worker Route(s) per configured zone. Any request matching the route would be handled by the worker.
  3. For every matching incoming request, the worker checks whether it's IP, Country and AS have a decision against. It checks for this in it's KV store. If found it performs the corresponding remediation.
  4. The Remediation Component runs as a daemon and periodically updates the KV store with the latest decisions from CrowdSec's Security Engine OR Blocklist Integration.

Note that in the following Schema, a Blocklist as a Service Integration can be substituted to the Security Engine.

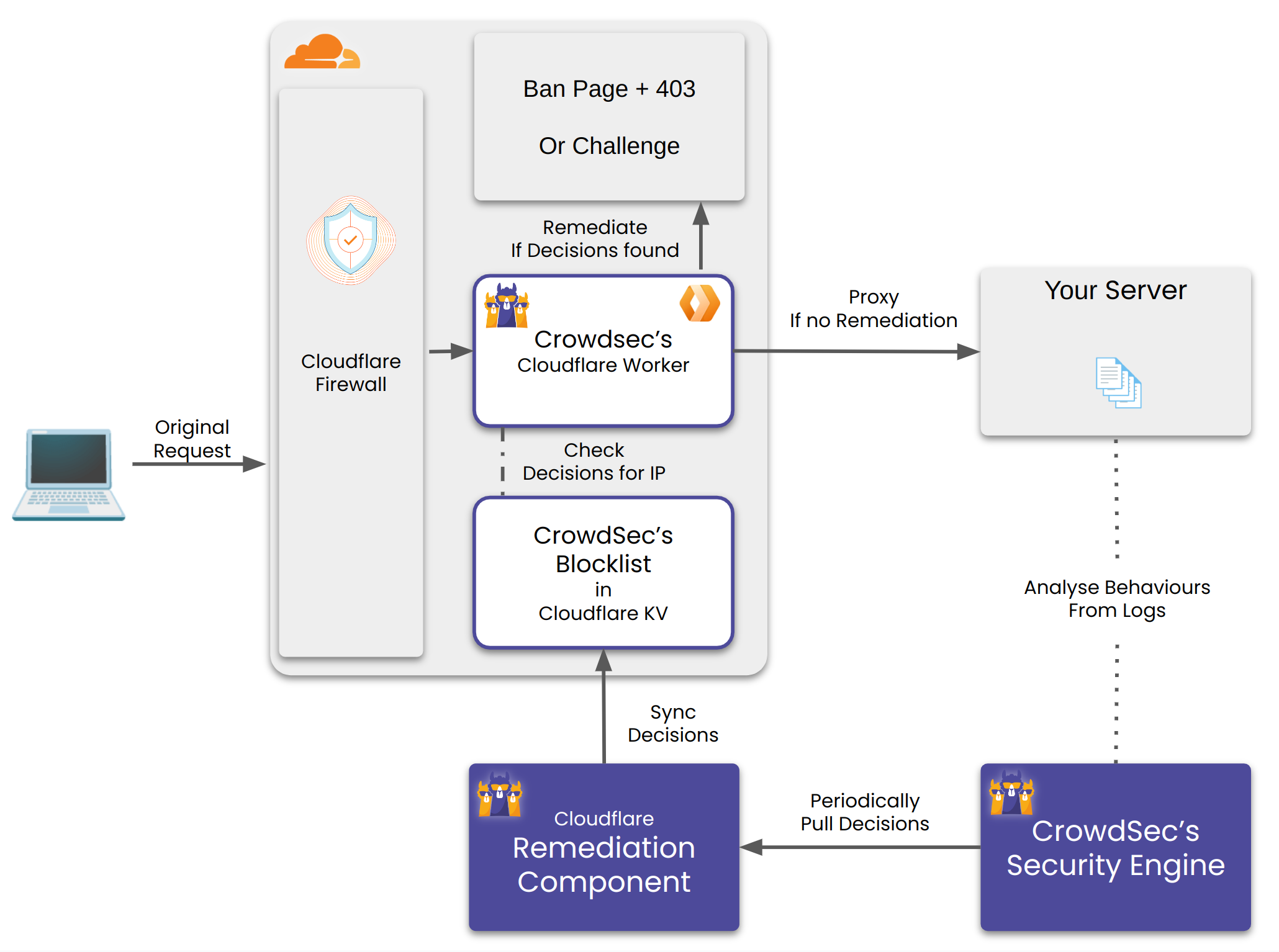

Architecture

Autonomous Mode​

Autonomous mode is ideal for users who prefer not to run a continuous process on their host/VM.
Combined with Blocklist as a Service (BLaaS), this provides the minimal footprint deployment—only running setup/cleanup commands when needed.

In autonomous mode (enabled with the -S flag), the Remediation Component functions without requiring a continuously running Go daemon process. Instead:

  1. Two Cloudflare Workers are deployed:
    • crowdsec-cloudflare-worker-bouncer (Remediation Worker) - applies cached decisions to incoming requests (same as daemon mode)
    • decisions-sync-worker (Blocklist updater Worker) - periodically fetches and caches security decisions using Cloudflare scheduled tasks

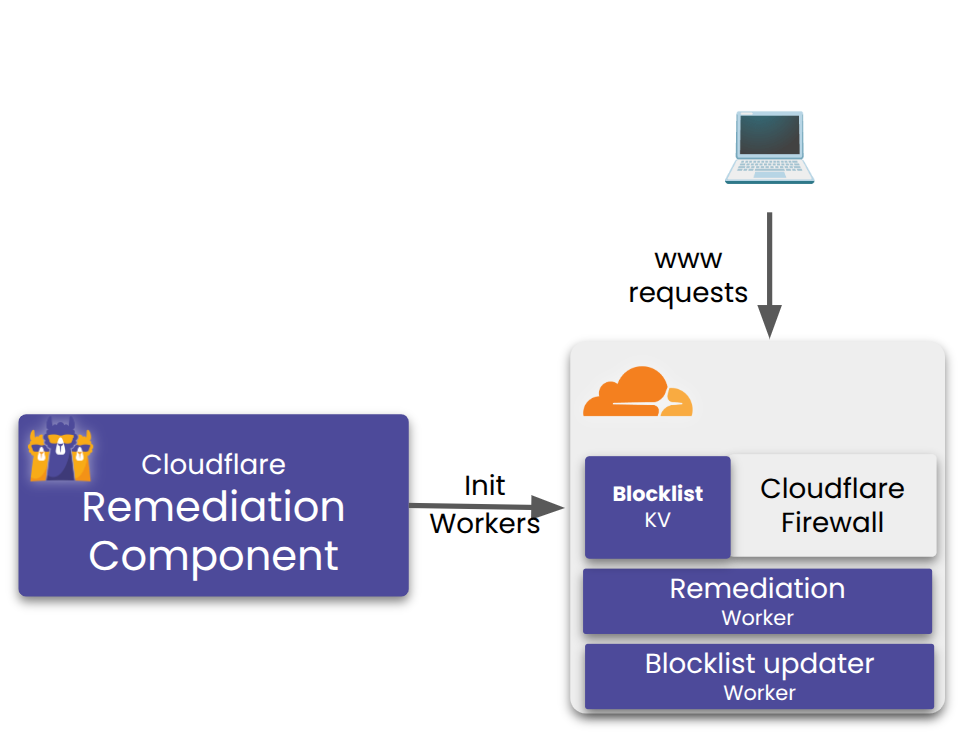

INIT Architecture

  1. The Go process only needs to run once for initial setup and configuration deployment

  2. All decision synchronization is handled automatically by the Blocklist updater Worker using Cloudflare's scheduled tasks

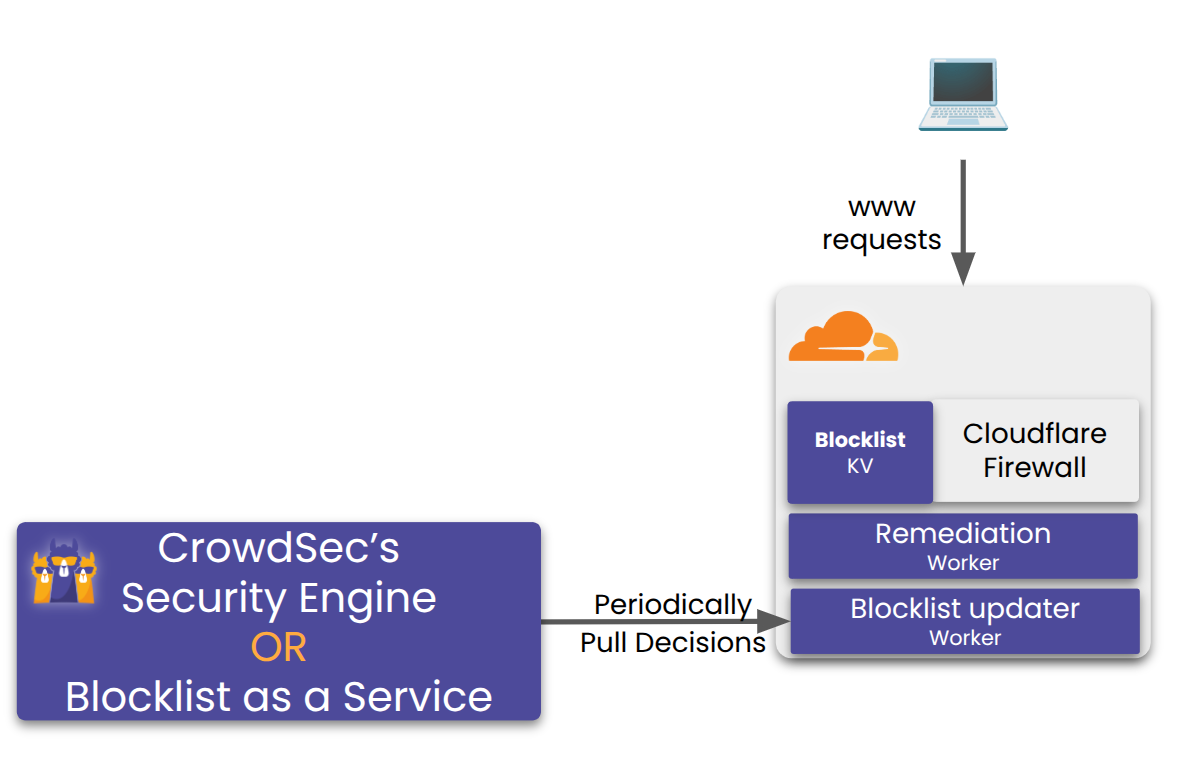

SYNC Architecture
  1. This mode reduces infrastructure requirements as no persistent daemon is needed

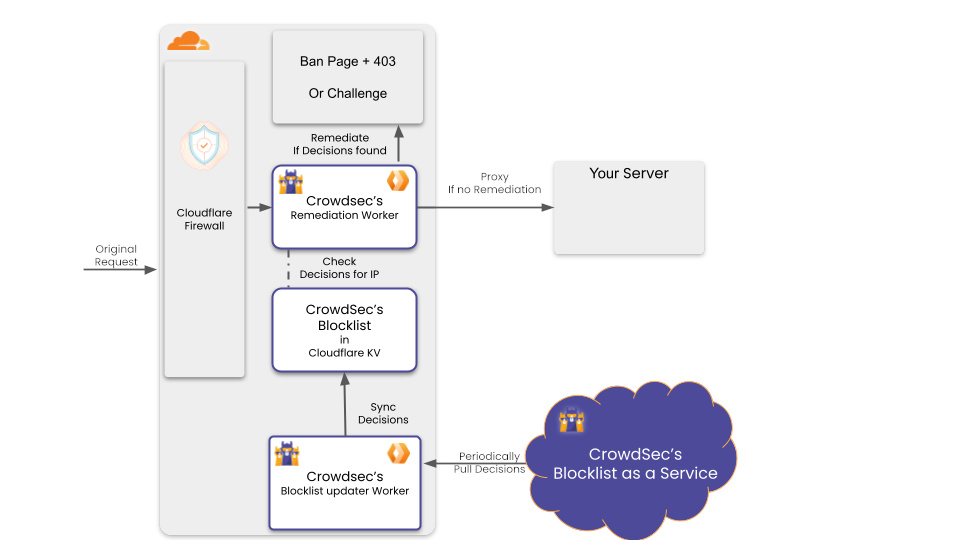

Autonomous Architecture

Reset all decisions from Cloudflare KV store​

In autonomous mode, you can reset all decisions without redeploying all the infrastructure (with the -S flag). In order to do so, add a RESET key (with a true value) to the KV store. The next time the sync worker runs, it will clear all existing decisions and repopulate them from CrowdSec LAPI.

Metrics​

If your Cloudflare token has permission on D1, the remediation component will automatically create a database to track:

  • Number of requests processed
  • Number of requests blocked

Metrics are stored in a D1 database. If your token does not have access to D1, a warning will be logged and metrics will be disabled.

In Daemon Mode, the running process:

  • Exposes metrics through the Prometheus endpoint
  • Automatically pushes metrics to CrowdSec for visualization with cscli

In Autonomous Mode, since there is no running daemon process:

  • Metrics are collected and stored in the D1 database
  • Metrics are NOT pushed to CrowdSec

Configuration explained​

crowdsec_config:
  lapi_key: ${API_KEY}
  lapi_url: ${CROWDSEC_LAPI_URL}
  update_frequency: 10s
  include_scenarios_containing: []
  exclude_scenarios_containing: []
  only_include_decisions_from: []
  insecure_skip_verify: false
  key_path: ""  # Used for TLS authentification with CrowdSec LAPI
  cert_path: "" # Used for TLS authentification with CrowdSec LAPI
  ca_cert_path: "" # Used for TLS authentification with CrowdSec LAPI

cloudflare_config:
    accounts:
        - id: <ACCOUNT_ID>
          zones:
            - zone_id: <ZONE_ID> # crowdflare.co.uk
              actions: # Supported Actions [captcha, ban]
                - captcha
              default_action: captcha # Supported Actions [captcha, ban, none]
              routes_to_protect: []
              turnstile:
                enabled: true
                rotate_secret_key: true
                rotate_secret_key_every: 168h0m0s
                mode: managed # Supported Modes "managed"|"invisible"|"non-interactive"
          token: <CLOUDFLARE_ACCOUNT_TOKEN>
          account_name: owner@example.com
    worker:
      log_only: false # If true, allow all requests, but still keep track of what would have been blocked in the metrics
      script_name: ""
      logpush: null
      tags: []
      compatibility_date: ""
      compatibility_flags: []
    decisions_sync_worker: # Configuration for autonomous decisions sync worker
        cron: '*/5 * * * *' # Cron schedule for syncing decisions (e.g., "*/5 * * * *" for every 5 minutes)

log_level: info
log_media: "stdout"
log_dir: "/var/log/"
ban_template_path: "" # set to empty to use default template

prometheus:
    enabled: true
    listen_addr: 127.0.0.1
    listen_port: "2112"

Cloudflare Configuration​

Background: In Cloudflare, each user can have access to multiple accounts. Each account can own/access multiple zones. In this context a zone can be considered as a domain. Each domain registered with cloudflare gets a distinct zone_id.

Generating a Cloudflare API Token​

For obtaining the token:

Ensure the token you are generating is a user API token these are found via clicking "my profile" and API Tokens. If you are in the Account API Tokens section then this is the incorrect place and these tokens have different rate limits which may cause issues whilst operating this Remediation Component.

  1. Sign in as a user who has access to the desired account.

Then click this link and create the token.

Alternatively, you can go to Tokens and create the token.

The Remediation Component requires the following permissions to function:

Permission GroupItemPermission
AccountTurnstileEdit
AccountWorkers KV StorageEdit
AccountWorkers ScriptsEdit
AccountAccount SettingsRead
AccountD1Edit
UserUser DetailsRead
ZoneDNSRead
ZoneWorkers RoutesEdit
ZoneZoneRead

By default, the token will be scopped to all accounts / zones you have access to.
We recommend scoping the token only to the required accounts and zones.

This remediation component require each configured to have at least one A or AAAA records.
If you have zones without them (eg, with only CNAME records), exclude them from the scope.
The bouncer will try to automatically ignore such zones, but if it fails to do so for any reason, you might incur higher KV storage charges.

To automatically generate config, check the helper section below.

Helpers​

The binary has built in helper scripts to do various operations.

Auto config generator​

Generates config by discovering all the accounts and the zones associated with provided list of tokens.

Example Usage:

sudo crowdsec-cloudflare-worker-bouncer -g <TOKEN_1>,<TOKEN_2>...  -o cfg.yaml
cat cfg.yaml  > /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml

This script only generates cloudflare related config. By default it refers to the config at /etc/crowdsec/bouncers/crowdsec-cloudflare-worker-bouncer.yaml for crowdsec configuration.

Using custom config:

sudo crowdsec-cloudflare-worker-bouncer -c ./cfg.yaml -g <TOKEN_1>,<TOKEN_2>...

Cloudflare Cleanup​

This deletes all the Cloudflare infrastructure which was created by the Remediation Component.

Example Usage:

sudo crowdsec-cloudflare-worker-bouncer -d

Setting up the worker route fail mode​

The Remediation Component creates worker routes to make the workers act as a reverse proxy for your origin servers. The worker routes are created with the failover mode set to Fail Closed. There's no public Cloudflare API we can use to change/update it to Fail Open mode.

With Fail Closed mode, Routes in fail closed mode will display a Cloudflare 1027 error page to visitors if there's an error within the worker. This error could be triggered due to quotas exceeding your plan etc. Cloudflare doesn't mention all the possible scenarios which could trigger this error page.

Thus we recommend you to manually override the failover mode to Fail Open for all the worker routes created by our Remediation Component. With Fail Open mode the requests would bypass the worker and be served directly from your origin servers. Thus your website would continue to function even if there's an error within the worker.

This can be done by following the steps below:

  1. Log in to the Cloudflare dashboard and select your account.
  2. For all the websites configured with the Remediation Component, do the following:
  3. Click on the website's name to open the Website's Overview page.
  4. Click on the Worker Routes tab from the left menu.

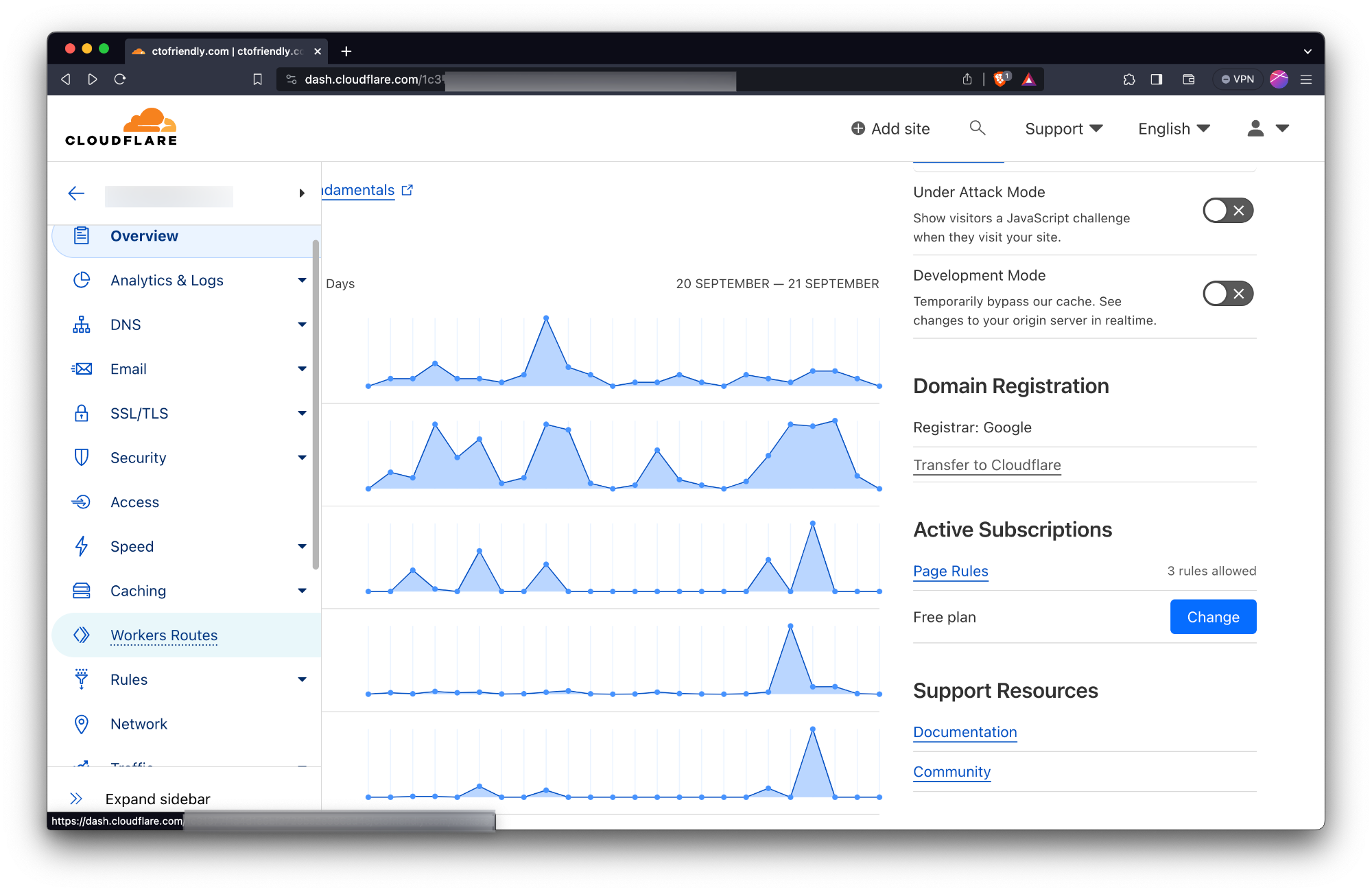

Worker Route

  1. Click on the route created by the Remediation Component.
  2. Click on the Edit button.
  3. Click on the Request limit failure mode. Check the Fail open button.

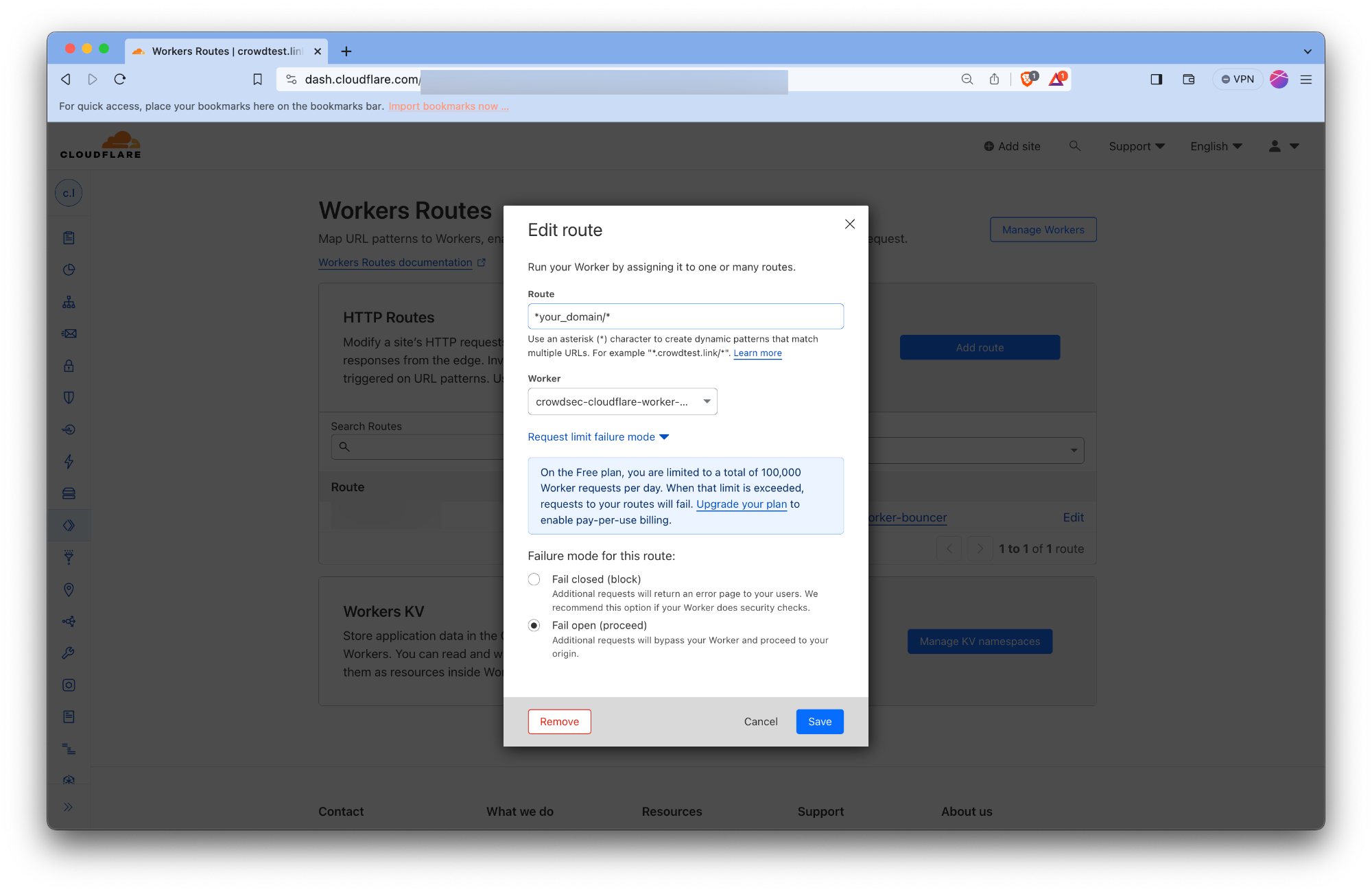

Fail Open

Appendix: Test with Cloudflare free plan​

Using Cloudflare's free plan with our Remediation Component requires to understand the constraints of the CloudFlare freeplan.
Despite these constraints, it's entirely feasible to leverage the Remediation Component for enhanced security.

In this section we'll guide you through:

  • An overview of the Cloudflare free plan's limitations and their impact on Remediation Component functionality
  • A walkthrough for deploying the Remediation Component within these constraints successfully

Understanding Cloudflare Free Plan Limitations​

Our Remediation Component integrates with Cloudflare Workers and Workers KeyValue storage, subject to specific thresholds under the free plan.
For the complete detailed information, refer to Cloudflare's official documentation:

Key limitations to note for Remediation Component operation on the free plan include:

  • KV write: Up to 1K per day
  • Worker Requests:Up to 100k per day or 1K per minute

KV write limit of 1K per day:
It's the primary limiting factor as the full decisions list (blocklist) passed on to the Remediation Component often exceeds tens of thousands of IPs.

  • It implies that the initial population of decisions in the Worker's KV will be truncated to 1K
  • However, it will still periodically receive new decisions and remove expired ones.
  • So, eventually you'll have many more than 1K IPs in the KV but it still diminishes the immediate effectiveness of the Remediation Component

The request quota: While the request quota might seem ample, it's essential to remember that both legitimate traffic and potential attack patterns contribute to this total.

  • ⚠️ It's primordial to properly setup the failmode
  • With the failmode set to passthrough, when you reach the Worker request limits your service will stay available, but the Remediation Component won't apply remediation anymore

Quick Guide : Configuring the Remediation Component on Cloudflare's Free Plan​

To adapt to the free plan's constraints, we can prioritize local decision-making and manual intervention over broader community-driven blocklists.
Here's how to set it up:

  1. Configuration Setup: Begin by auto-generating the Remediation Component configuration.
  2. Limiting Decision Sources: Modify the configuration to prioritize decisions generated by your Security Engine and added manually.
crowdsec_config:
[...]
only_include_decisions_from: ["cscli", "crowdsec"]
  1. Failmode Configuration: It's crucial to configure the failmode properly to ensure your service remains operational even when request quotas are reached.
  2. Testing with manual decisions: Verify the functionality by adding decisions manually, which should be promptly reflected in KV storage and enforced by the Remediation Component.
  sudo cscli decisions add --ip 192.168.1.1 --type captcha

check your decisions has been added using:

  sudo cscli decisions list --origin cscli

And within a few seconds it will be sent to the KV and the proper remediation should be applied to the requests from the specified IP

Configuration Reference​

crowdsec_config​

Used to nest the configuration related to crowdsec.

lapi_url​

string

The URL of CrowdSec LAPI. It should be accessible from the Remediation Component.

lapi_key​

string

It can be obtained by running the following on the machine CrowdSec LAPI is deployed on.

sudo cscli -oraw bouncers add cloudflarebouncer # -oraw flag can discarded for human friendly output.

update_frequency​

string (That is parseable by time.ParseDuration)

The Remediation Component will poll the CrowdSec every update_frequency interval. (default: 10s)

include_scenarios_containing​

[ ]string

Ignore IPs banned for triggering scenarios not containing either of provided word.

Example
include_scenarios_containing: ["ssh", "http"]

exclude_scenarios_containing​

[ ]string

Ignore IPs banned for triggering scenarios containing either of provided word.

Example
exclude_scenarios_containing: ["ssh", "http"]

only_include_decisions_from​

[ ]string

Only include IPs banned due to decisions orginating from provided sources.

Example
only_include_decisions_from: ["cscli", "crowdsec"]

insecure_skip_verify​

boolean

Skip verification of the LAPI certificate, usually used for self-signed certificates

key_path​

string

Path to the private key file to use for TLS authentication with CrowdSec LAPI.

cert_path​

string

Path to the certificate file to use for TLS authentication with CrowdSec LAPI.

ca_cert_path​

string

Path to the CA certificate file to use for TLS authentication with CrowdSec LAPI.

cloudflare_config​

Cloudflare configuration.

accounts[].id​

string

The ID of the Cloudflare account.

accounts[].zones[].zone_id​

string

The ID of the Cloudflare zone.

accounts[].zones[].actions​

captcha | ban

Supported actions for the zone.

accounts[].zones[].default_action​

captcha | ban | none

Default action to take for the zone.

accounts[].zones[].routes_to_protect​

[ ]string

List of routes to protect within the zone. Example value ["example.com/"]

accounts[].zones[].turnstile.enabled​

boolean

Enable or disable turnstile for the zone.

accounts[].zones[].turnstile.rotate_secret_key​

boolean

Rotate the secret key for turnstile.

accounts[].zones[].turnstile.rotate_secret_key_every​

string (That is parseable by time.ParseDuration)

Duration for rotating the secret key. Values should be in the format of 1h2m3s. Example value 168h0m0s for 7 days.

accounts[].zones[].turnstile.mode​

Mode for turnstile. Supported values ["managed", "invisible", "non-interactive"]. See cloudflare-docs for more details.

accounts[].zones[].token​

string

Cloudflare account token.

accounts[].zones[].account_name​

string

Account name.

worker.log_only​

bool

If true, allow all requests but keep track of what would have been blocked in the metrics.

Defaults to false

worker.script_name​

string

Name to use for the worker script.

Default to crowdsec-cloudflare-worker-bouncer.

worker.logpush​

bool

Enable logpush for the worker.

Default to no value.

worker.compatibility_date​

string

See https://developers.cloudflare.com/workers/configuration/compatibility-dates/.

Default to no value

worker.compatibility_flags​

list of strings

See https://developers.cloudflare.com/workers/configuration/compatibility-flags/.

Default to no value.

decisions_sync_worker.cron​

string

Cron expression that defines how often the decisions sync worker runs in autonomous mode. This controls the frequency at which the worker fetches the latest decisions from CrowdSec LAPI and updates the KV store.

The cron expression follows standard cron syntax with 5 fields: minute hour day month day_of_week

Example values:

  • */1 * * * * - Every minute (default)
  • */5 * * * * - Every 5 minutes
  • */10 * * * * - Every 10 minutes

This setting only applies to autonomous mode (when using the -S flag). In daemon mode, the update_frequency setting is used instead.

Default to */5 * * * * (every 5 minutes).

prometheus​

Prometheus configuration.

enabled​

boolean

Enable or disable Prometheus metrics.

listen_addr​

string

Address to listen for Prometheus metrics. Example value 127.0.0.1

listen_port​

string

Port to listen for Prometheus metrics. Example value 2112

Others​

ban_template_path​

string

Path to the ban template file. If not provided, the default template is used. This HTML would be rendered to requests when they are banned.

log_level​

info | debug | error | warning | trace

Log level of the Remediation Component.

log_mode​

stdout | file

Where the log contents are written (With file it will be written to log_dir with the name crowdsec-cloudflare-worker-bouncer.log)

log_dir​

Relevant if log_mode is file. This determines where to create log file.

Troubleshooting​
